Display Modes

Display Modes are view settings that showcase your designs in rich and customizable styles. For anyone who needs presentation-ready images, the built-in modes allow you to create beautiful images with just a couple of clicks. You can quickly change how objects are displayed and customize the look to capture just the right effect.

Custom Patent Mode

Wireframe Mode

Shaded Mode

out

The built-in display modes are:

Wireframe: The classic CAD working mode: an unshaded wireframe.
Shaded: Shaded mode uses a mesh to shade surfaces using the layer colors.
Rendered: A fast simulation of the rendered object.
Ghosted: A semi-transparent shaded mode, great for seeing the inside of models.
X-Ray: Wireframe and point objects are shown, even if they would be hidden by surfaces in front of them.
Technical: Uses real-time silhouettes and intersections, creases, borders, blending shaded and rendered display.
Artistic: Simulates a pencil drawing with soft lines.
Pen: Get the look of a pen drawing with black lines.
8

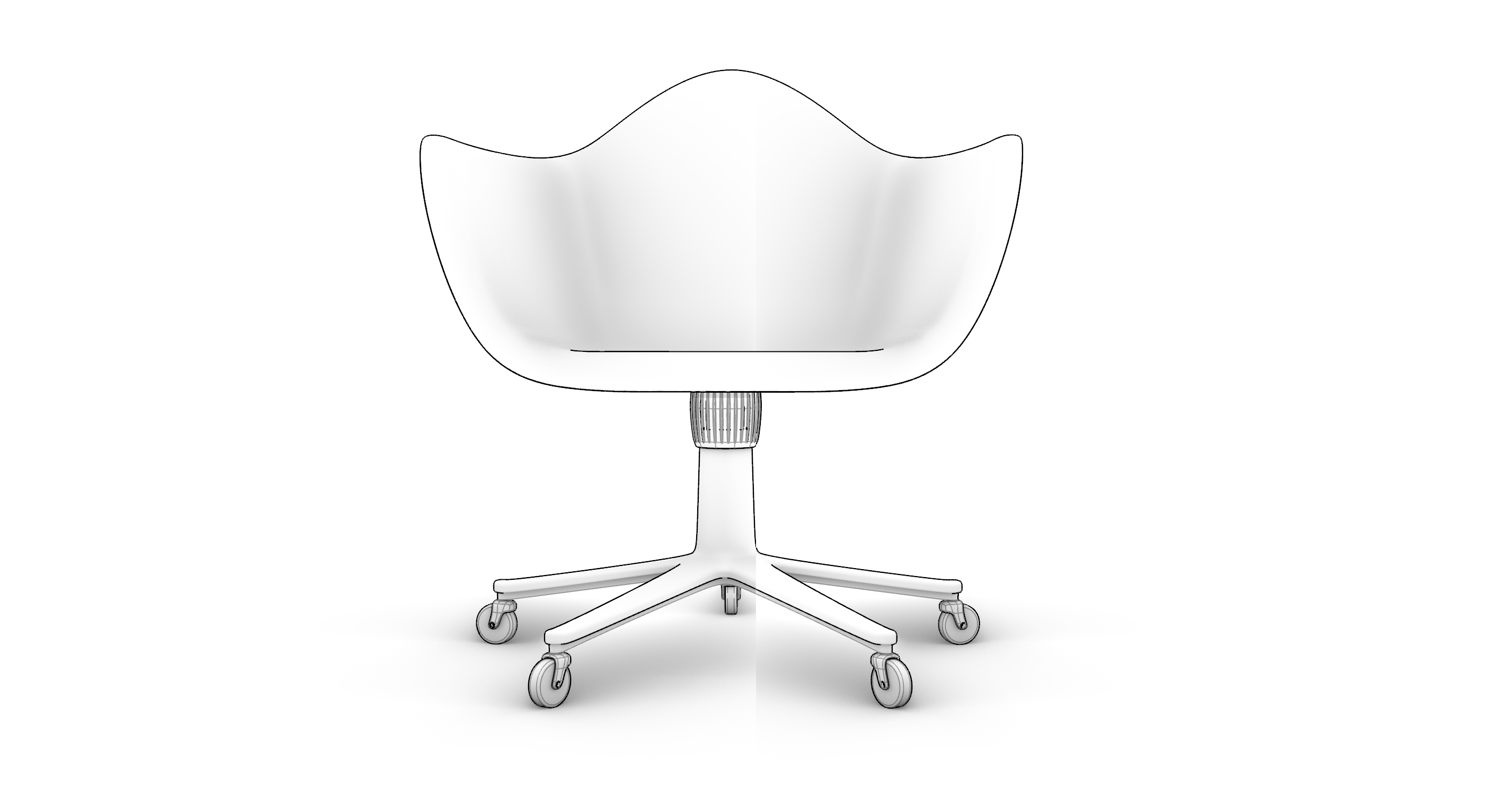

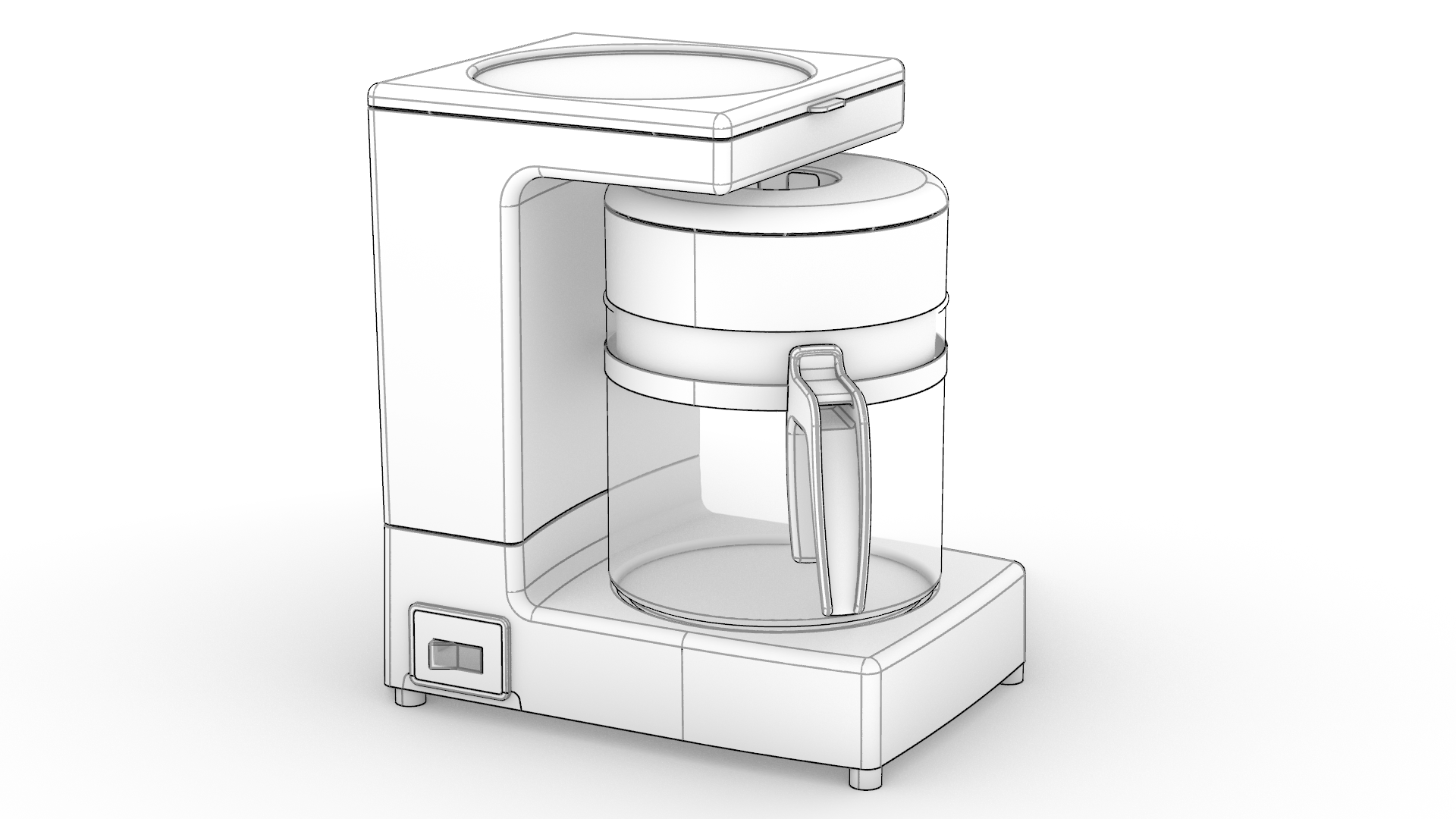

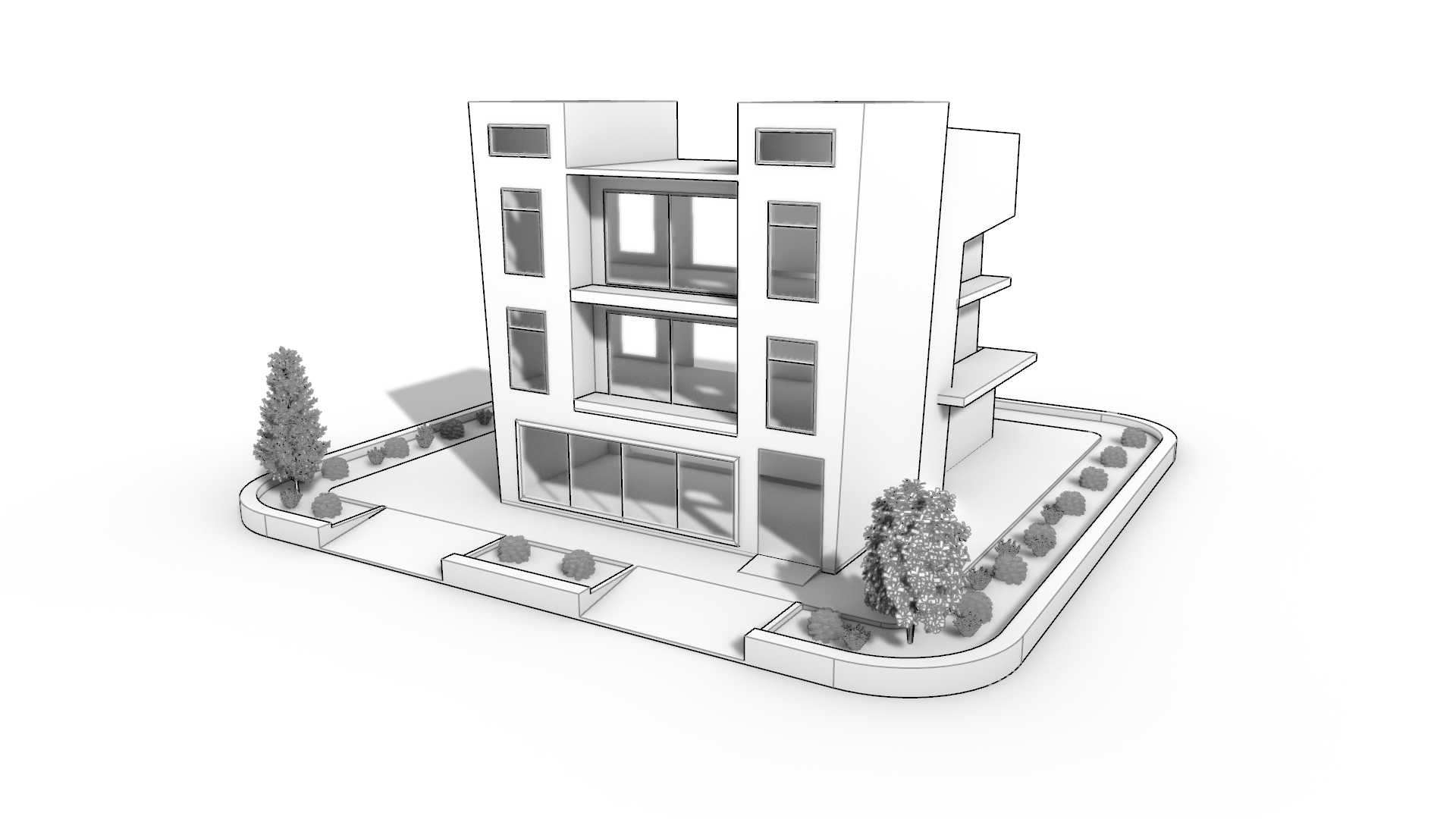

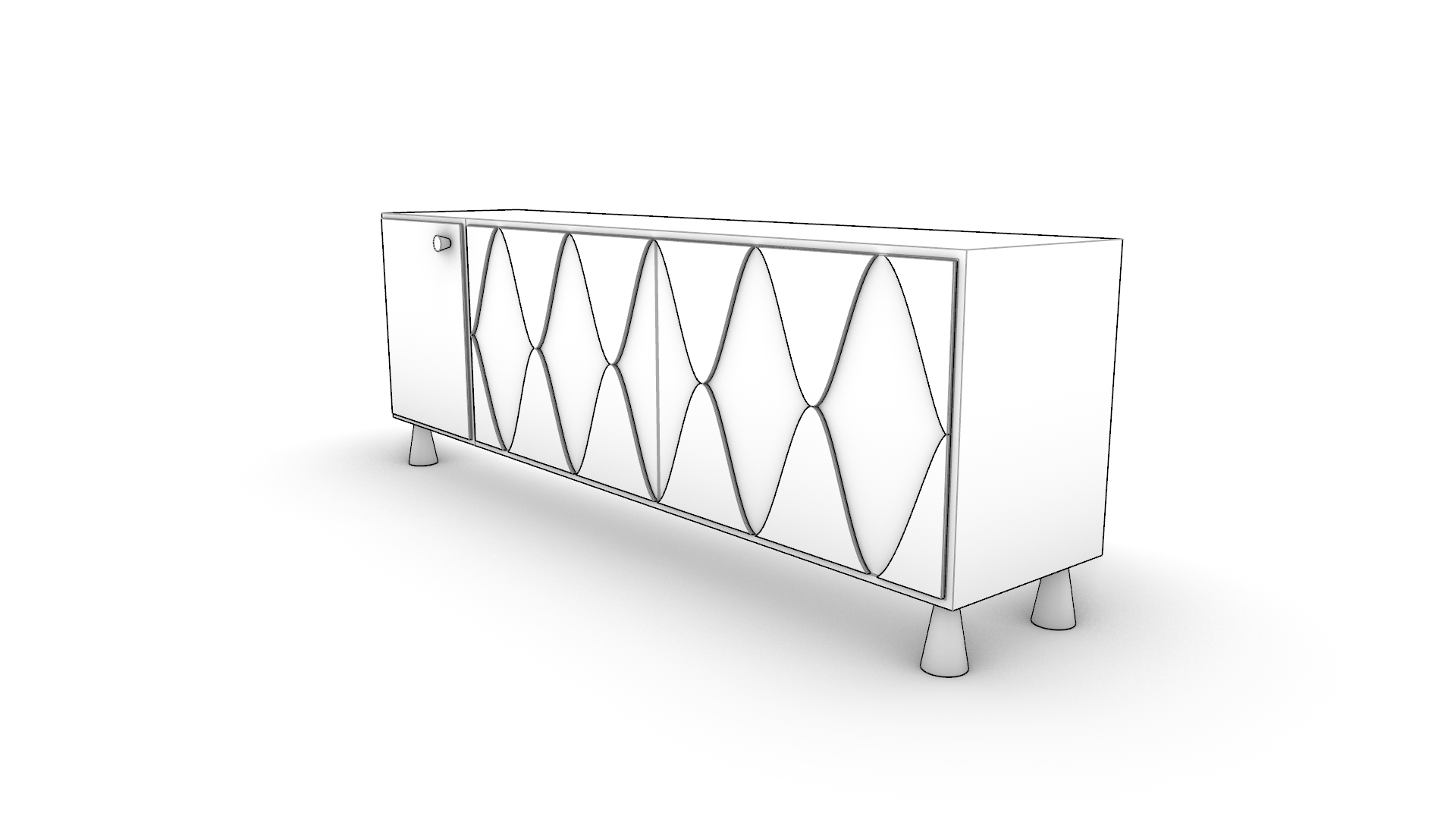

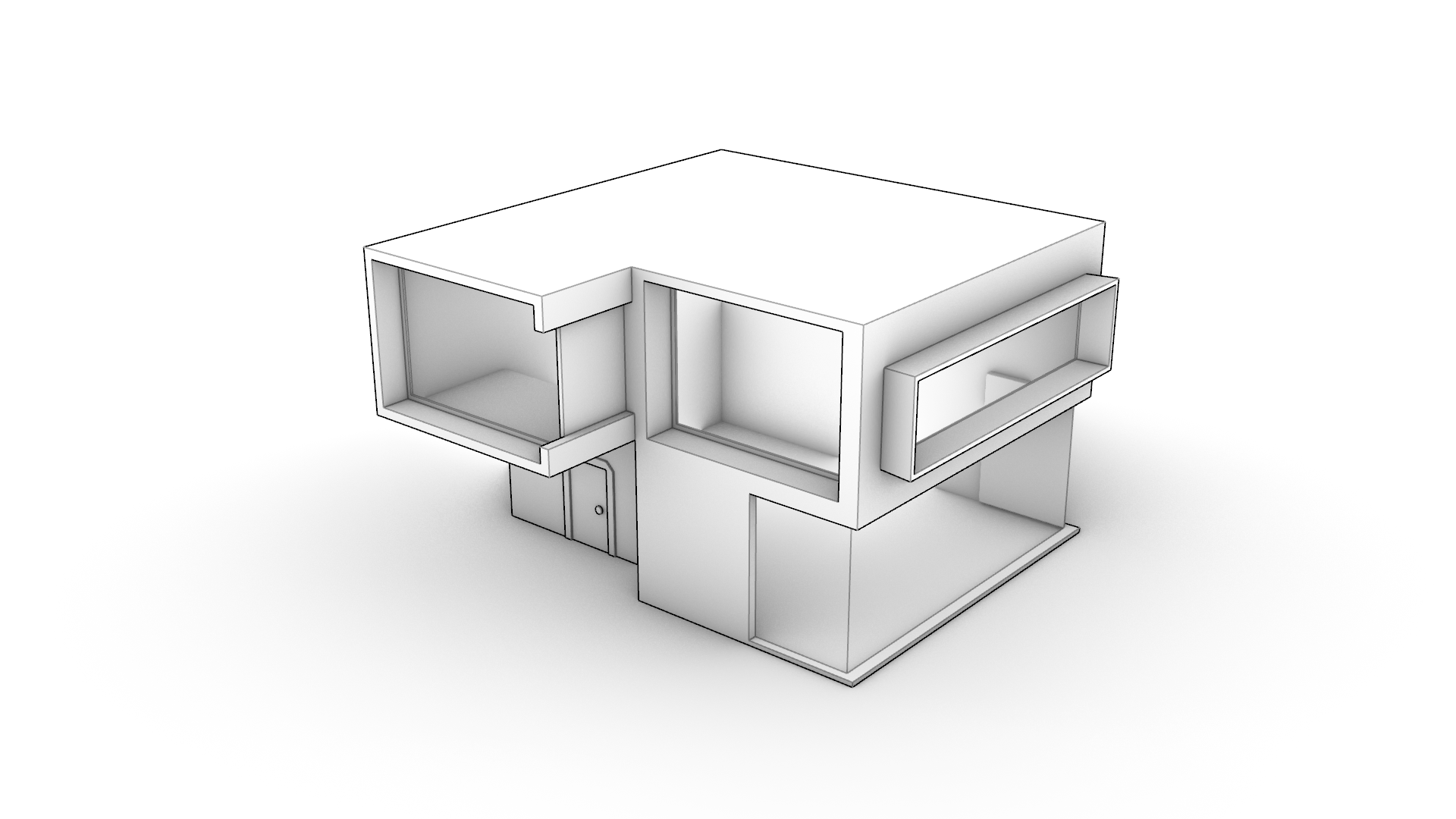

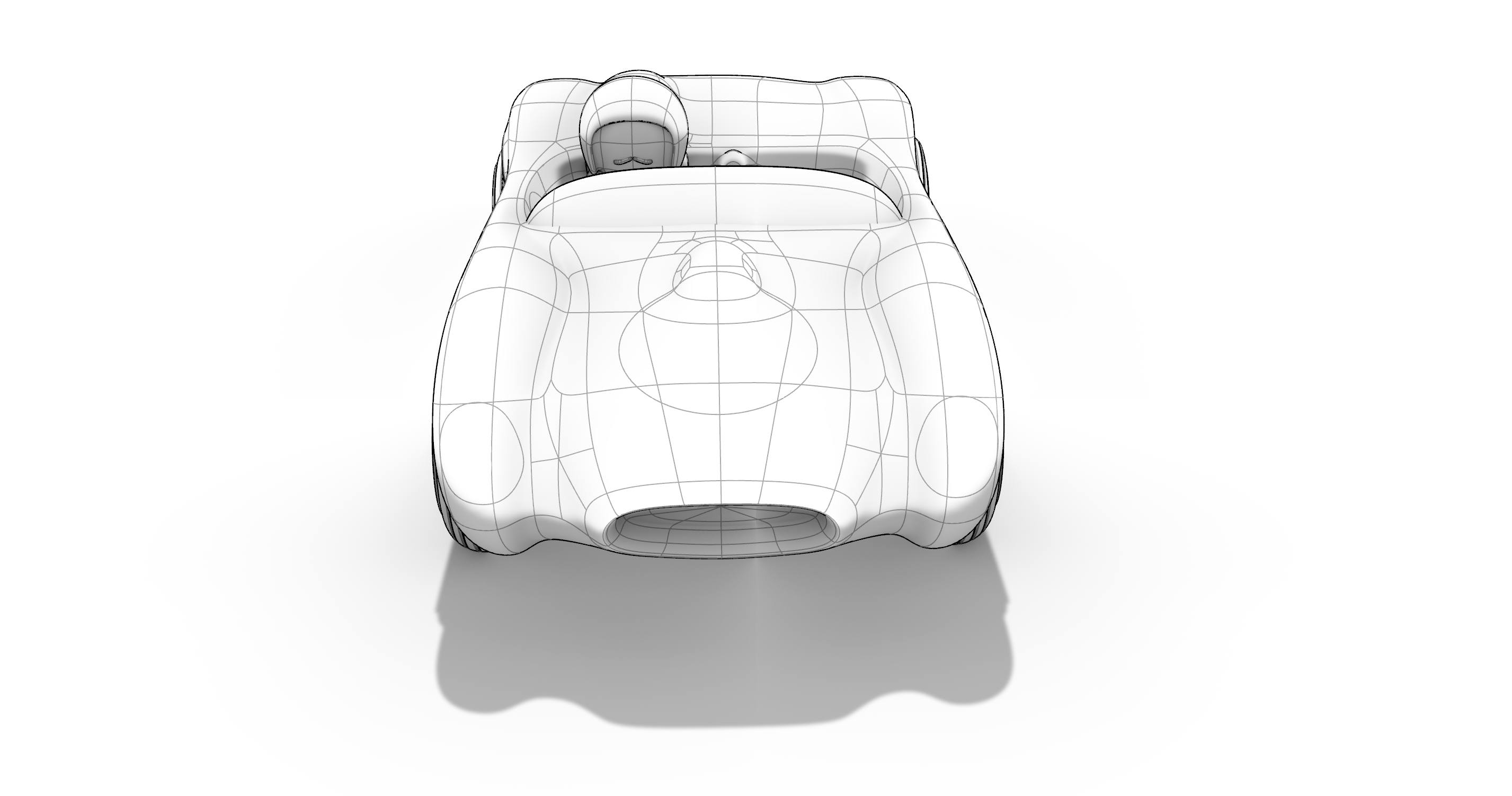

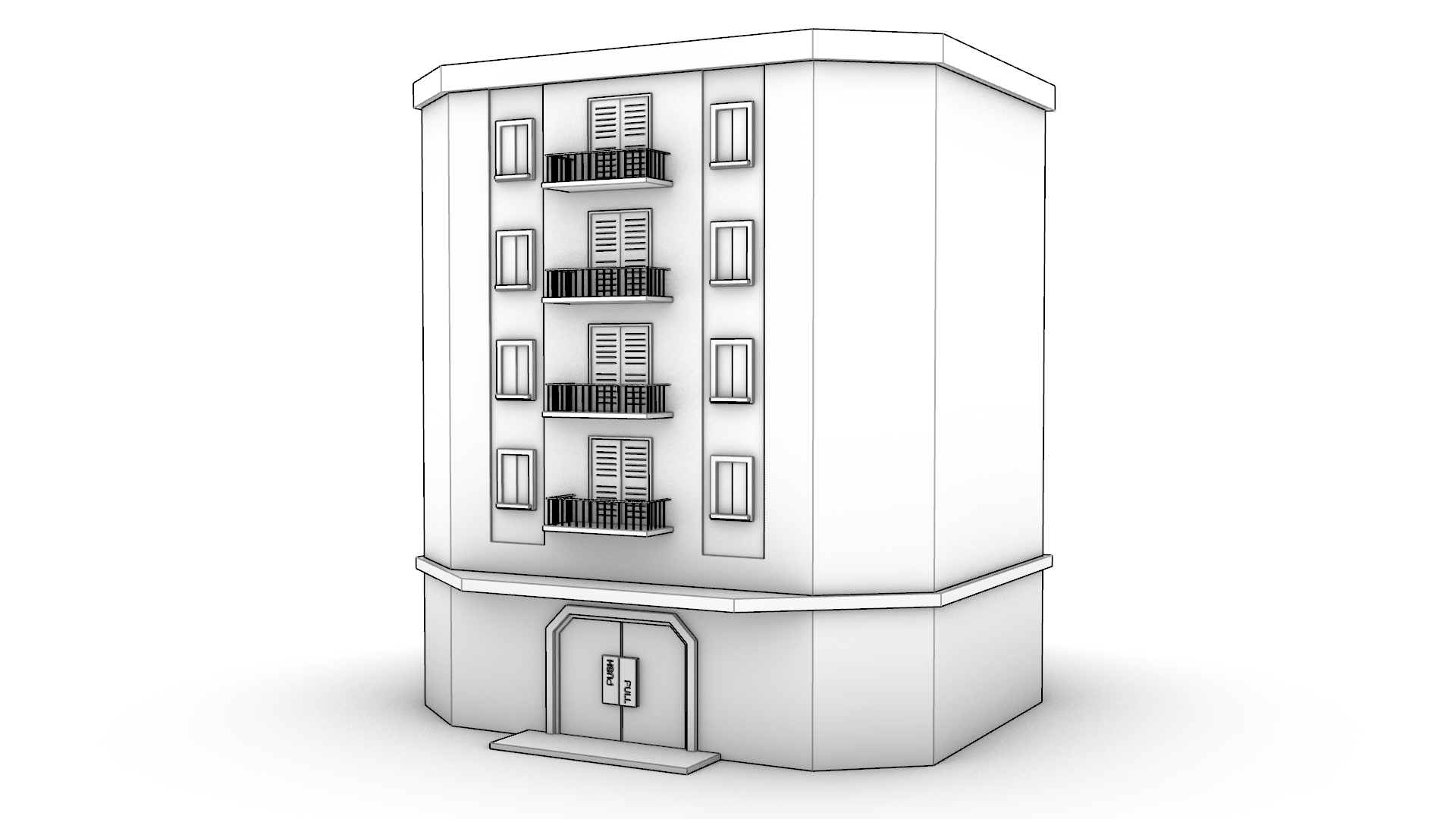

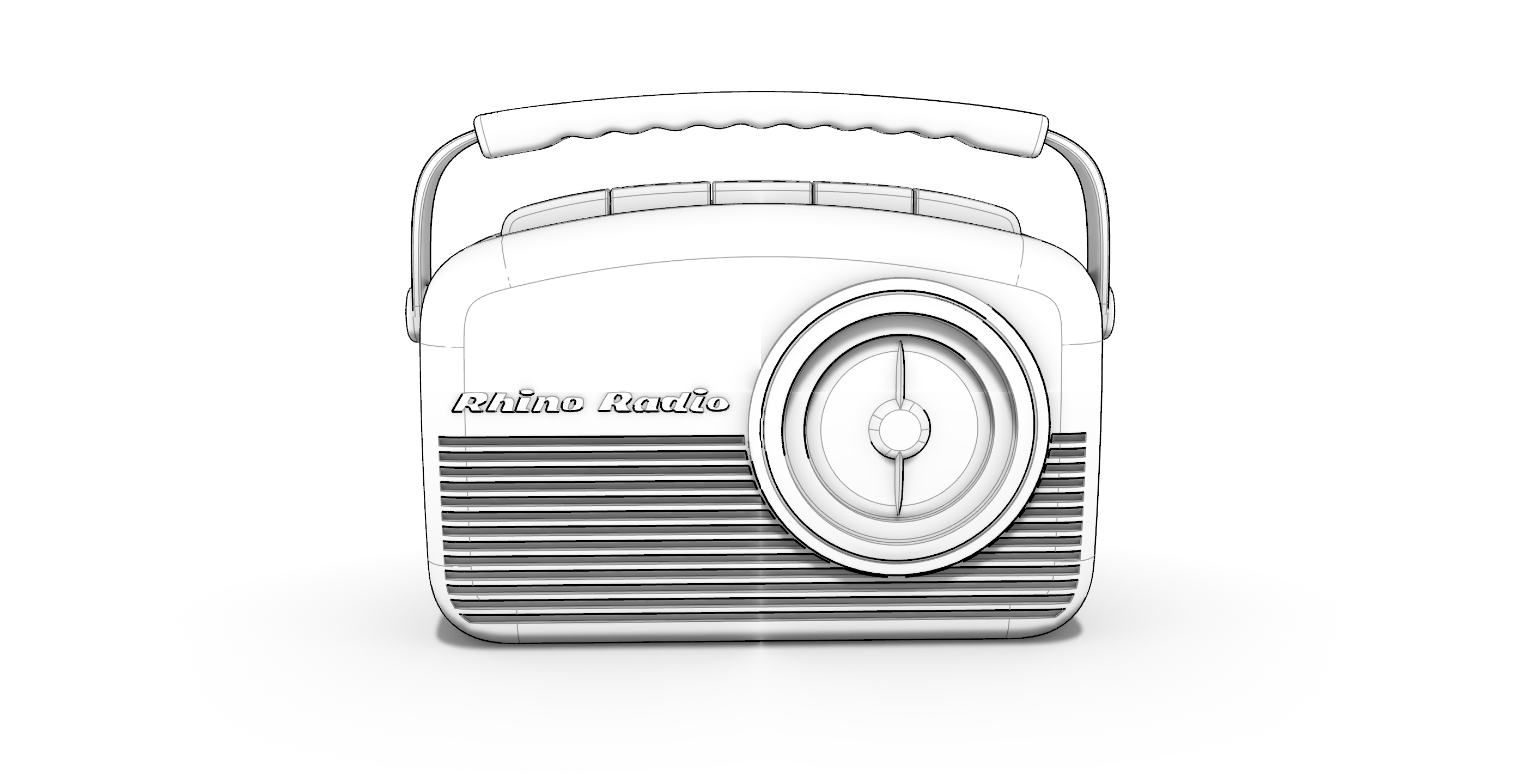

Monochrome: Combines the effects of a white studio look and a sketch feel.
Arctic: Turns all objects white, turns the background white, and adds soft shadows.
Raytraced: Rendered mode with Cycles, a real-time raytracer.
